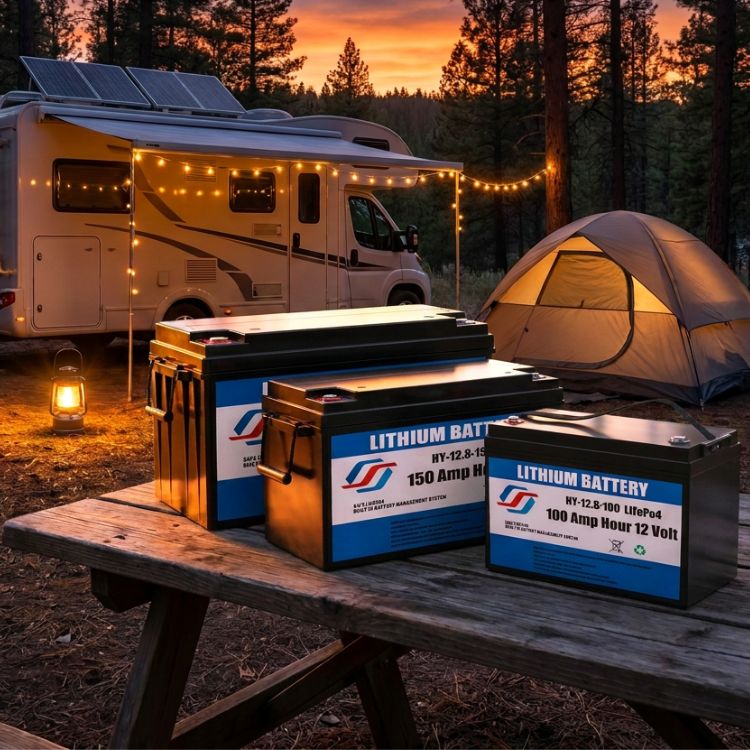

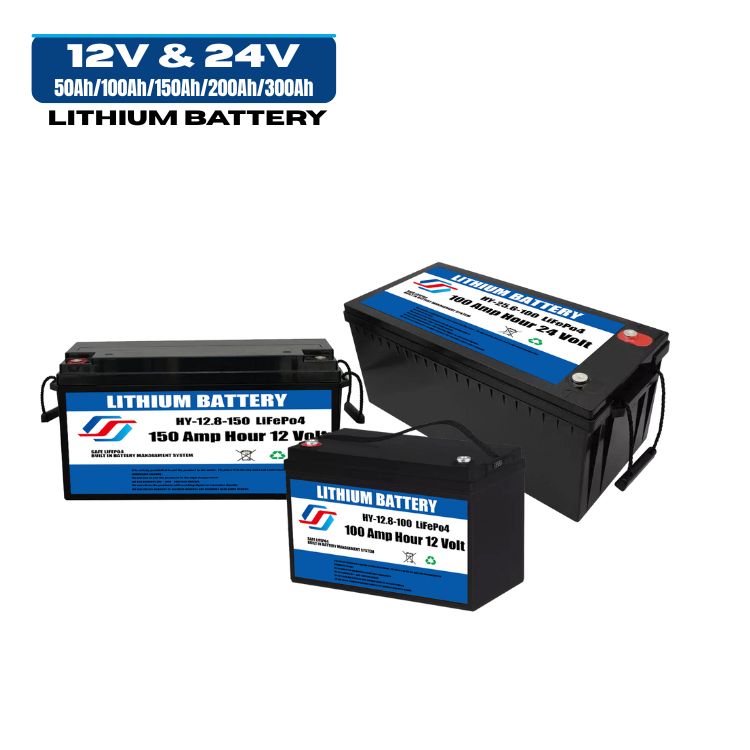

Rechargeable Deep Cycle Lithium Battery 12V 24V Lifepo4 Battery

HY ENERGY’s Comprehensive Energy Solutions

We deliver complete lithium iron phosphate power packages, integrating:

• High-efficiency battery modules

• Smart charging infrastructure

• Sophisticated power management technology

Electrical Configuration Options:
Available in multiple voltage variants spanning:
12V | 24V | 48V | 72V | 96V | 388V

Energy Storage Capabilities:
Providing capacities from 10Ah through 600Ah

Tailored Power Solutions:
For unique requirements beyond standard offerings, we engineer:

• Custom-configured LiFePO4 energy storage systems

• Precision-matched to your operational parameters

Solution Development Process:
To create your optimal configuration:

1. Share your technical specifications covering:

   • Dimensional requirements

   • Electrical parameters

   • Energy storage needs

   • Discharge characteristics

2. Our engineering specialists will:

   • Conduct thorough evaluation

   • Develop customized architectures

   • Work in partnership throughout implementation



Advanced System Characteristics:

1. Integrated Power Regulation Module

2. Enhanced Charge/Discharge Throughput

3. Extended Environmental Operating Range

4. Dual Voltage Threshold Protection

5. Smart Cell Voltage Synchronization

6. Current Overload Safeguard

7. Wireless Monitoring Interface (Configurable)

8. Digital Status Indicator (Optional)

9. Increased Available Energy Storage

10. Prolonged Operational Lifespan

11. Optimized Weight Efficiency



  Specification :

Model	SL-LFP-12-100-PS	SL-LFP-12-200-PS	SL-LFP-12-300-PS
Nominal Voltage (V)	12.8V	12.8V	12.8V
Nominal Capacity (Ah)	100Ah	200Ah	300Ah
Energy	1280wh	2560wh	3840wh
Battery Dimensions	326x170x220mm	410x180x230mm	525x240x220mm
Net Weight (Approx.)	12kg	21KG	35kg
Layout/Terminals	M8	M8	M8
Chemistry	Lithium Iron Phosphate (LiFePo4)
Case /Packing	ABS case
LCD display	Optional
Blue tooth	Optional
Comms.	Optional
Cycle life	>3000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD
Depth of Discharge (DoD)	100%
Charge model	CV/CC
Charging voltage	14.6V
Optimum charge current range	20A to 50A
Rapid charging	Max. charge current 100A (1C) (Max Temperature increase within 15°C)
BMS Charge Voltage Cut-Off	15.0 V (3.75 ±0.025 vpc) (1 ±0.2 s)
BMS Discharge Voltage Cut-Off	8.8 V (2.2 ±0.08 vpc) (20ms)
Standard charge current	20A (0.2C)	40A	50A
Max.Continuous discharge current	100 Ampere	200 Ampere	200 Ampere
Peak discharge current	300A(3C)	300A	300A
Operating temperatures	Standard  0℃~60℃ Discharge -30℃~75℃ Storage   -20℃~45℃
				Storage performance	Capacity can be kept ≥ 80% in storage for 12months





Applications :

AWP / Backup Power / Electric Vehicles / Floor Machines / Marine /

Solar System / EV / E-bike / E-Motorcycle / Boat /Golf Cart

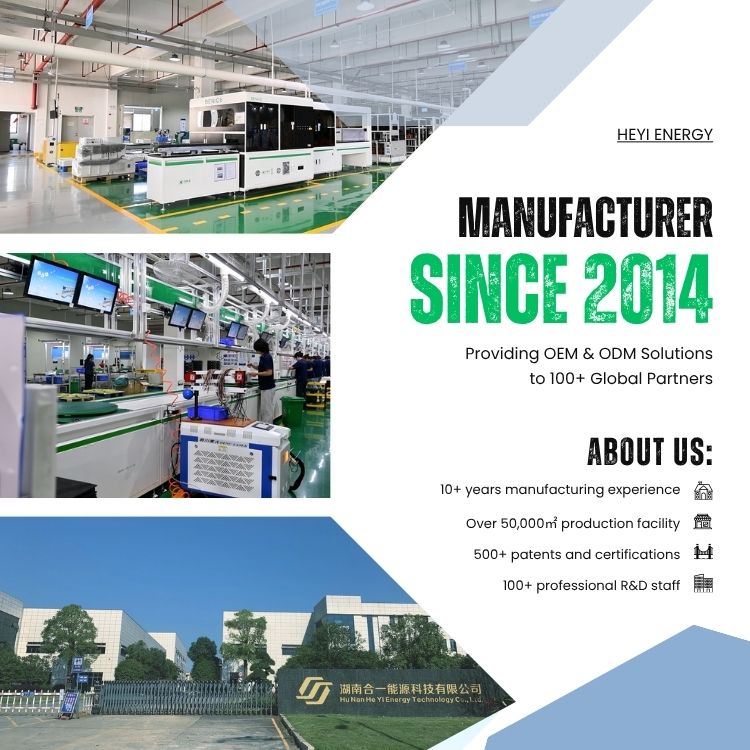

HEYI ENERGY is a leading high-tech enterprise specializing in the development and manufacturing of advanced lithium battery technologies. Established in 2014, we focus on lithium iron phosphate (LiFePO4) and lithium-ion (NMC) battery solutions, delivering safe, reliable, and efficient energy storage systems for global markets.

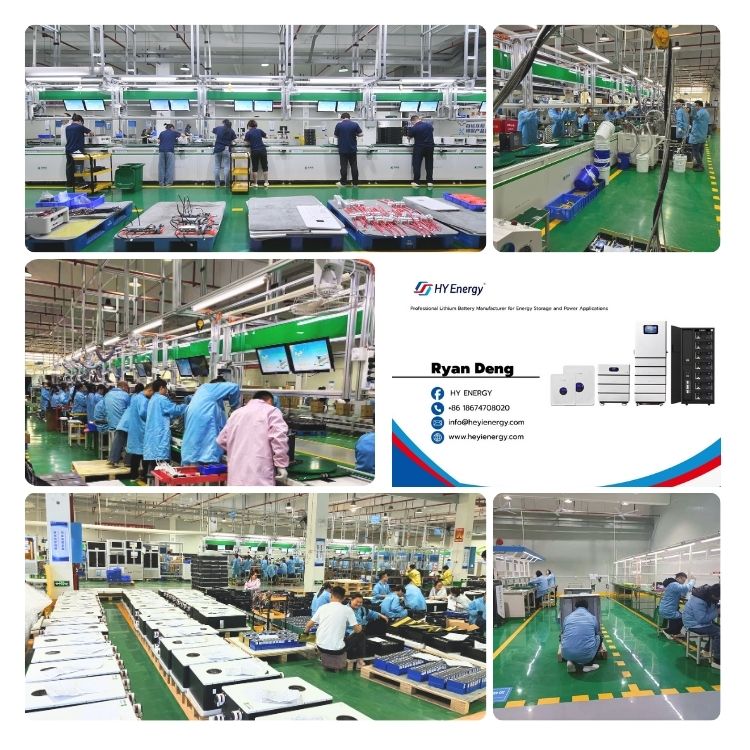

Our state-of-the-art production facilities span over 50,000 square meters, equipped for the large-scale manufacturing of both battery cells and packs. With a workforce of more than 1,500 employees, including over 300 experienced R&D engineers, we continuously drive innovation and quality through technological leadership.

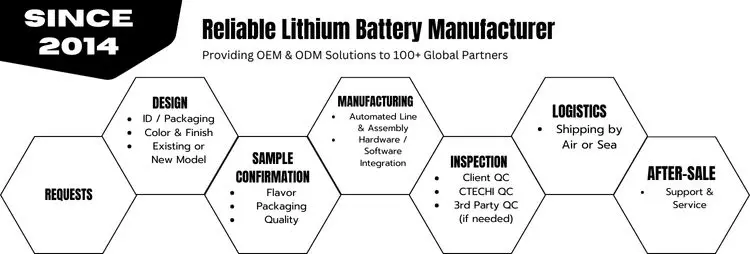

HEYI ENERGY proudly provides OEM and ODM solutions to 100+ global partners, enabling customized energy solutions across a wide range of applications. Our product portfolio includes:

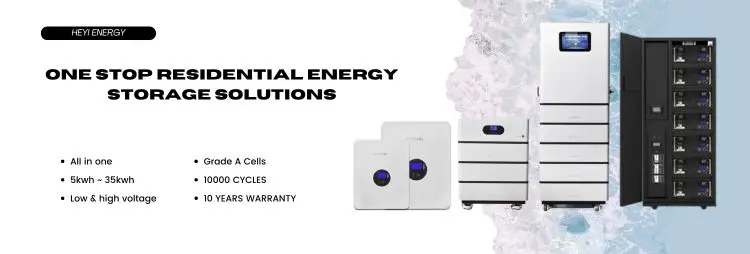

• Residential energy storage systems

• Commercial and industrial energy storage solutions

• Power batteries for various vehicles and industrial machinery

• Ultra-low temperature batteries for extreme environments

Our core technical team possesses extensive expertise in battery system design, battery management systems (BMS), operational control, and rigorous cell and module testing. From the initial concept to the final product, we ensure system compatibility, stability, and long-term reliability.

At HEYI ENERGY, our mission is to provide sustainable, cost-effective power solutions that not only meet the evolving needs of our customers but also contribute to a greener, low-carbon future.

---

HEYI ENERGY – A globally recognized manufacturer of lithium battery and solar energy products.









Q: Do you offer free samples?

A: We don’t provide free sample, but the sample cost can return to you when you place bulk orders .



Q: What is your terms of payment?

A: We accepted most of payment terms, like T/T,L/C at sight, PayPal, Western Union, Cash etc.



Q: What is a minimum number (pieces) of order for this product?

A: Our MOQ is 1 piece, the more the quantity, the more preferential it is.



Q: How many time you need for production of one sample?

A: If customized according to customer requirements, production time needs 10-15 working days, if it’s our standardized products most of the time we can supply from stock .

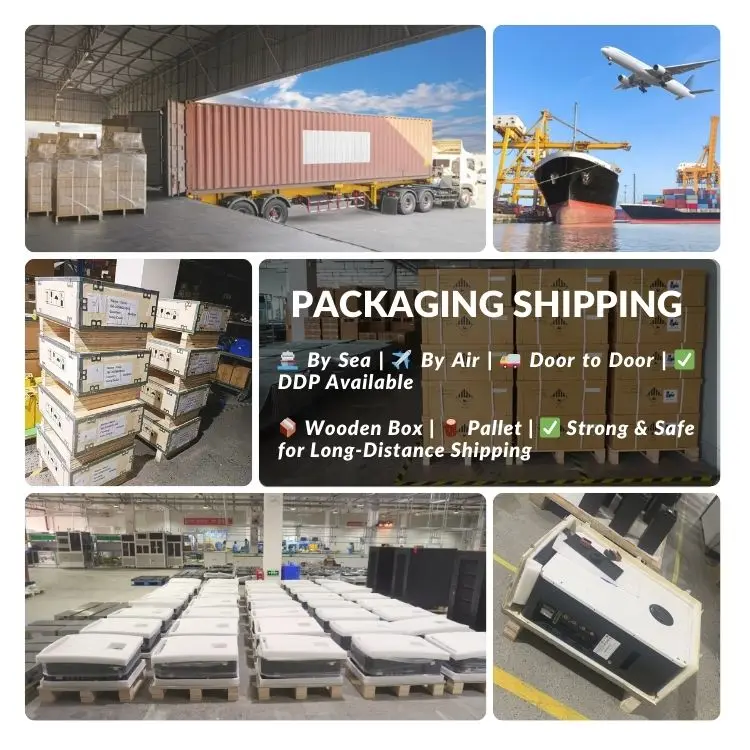

Q: How do you ship the products?

A: For small orders or samples we can arrange door to door air freight delivery , for large quantity we normally arrange container or LCL ocean shipment .



Q: How much does shipping cost?

A:It depends on the quantity of goods, the shipping method, and the country . But we will always figure out the best choice for you .



Q: How can I get the best prices?

A: You get cheaper per-item price when you buy larger quantities. Use the website to check prices. Returning customers receive better discount levels.



Q: What if the product is broken?

A: If any product is faulty, you can send me the picture or video to us, and we will study it. And provide the spare parts for after sale service.
