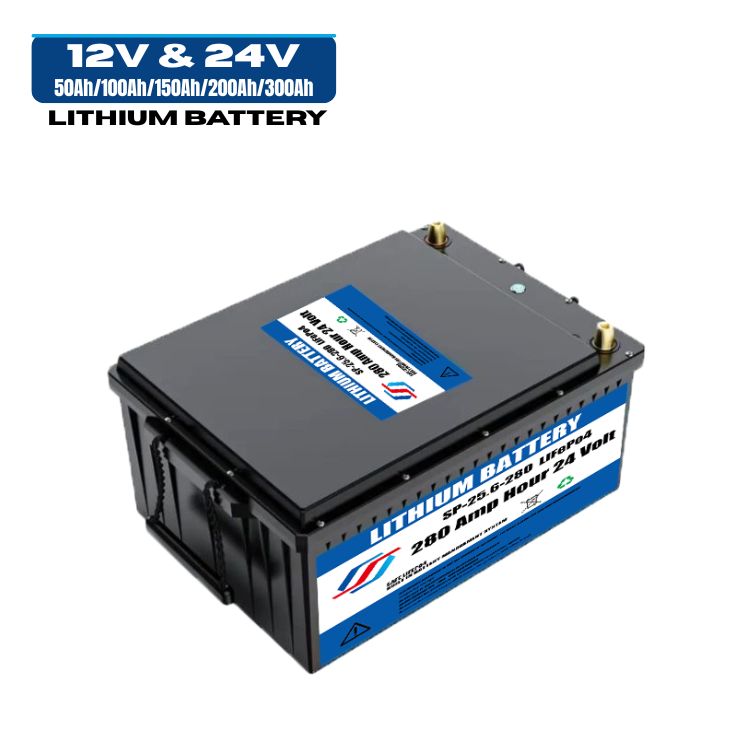

24V 300Ah LiFePO4 Lithium Battery Deep Cycle Long Life Battery for Outdoor Camping RV Solar Energy Storage

Product Video
Watch the video below for a detailed product introduction.

HY ENERGY’s Comprehensive Energy Solutions

We deliver fully integrated lithium iron phosphate (LiFePO4) power packages, combining:

• High-efficiency battery modules

• Smart charging infrastructure

• Advanced power management technology

Electrical Configuration Options
Available in multiple voltage variants:
12V | 24V | 48V | 72V | 96V | 388V

Energy Storage Capabilities
Capacities ranging from 10Ah to 600Ah

Tailored Power Solutions
For requirements beyond our standard offerings, we engineer:

• Custom-configured LiFePO4 energy storage systems

• Precision-matched to your operational parameters

Solution Development Process
To build your optimal configuration:

Share your technical specifications, including:

• Dimensional requirements

• Electrical parameters

• Energy storage needs

• Discharge characteristics

Our engineering specialists will:

• Conduct a thorough evaluation

• Develop customized architectures

• Partner with you throughout implementation



Advanced System Characteristics

• Integrated Power Regulation Module

• Enhanced Charge/Discharge Throughput

• Extended Environmental Operating Range

• Dual Voltage Threshold Protection

• Smart Cell Voltage Synchronization

• Current Overload Safeguard

• Configurable Wireless Monitoring Interface

• Optional Digital Status Indicator

• Increased Usable Energy Storage

• Prolonged Operational Lifespan

• Optimized Weight Efficiency



  Specification :

Model	SL-LFP-12-100-PS	SL-LFP-12-200-PS	SL-LFP-12-300-PS
Nominal Voltage (V)	12.8V	12.8V	12.8V
Nominal Capacity (Ah)	100Ah	200Ah	300Ah
Energy	1280wh	2560wh	3840wh
Battery Dimensions	326x170x220mm	410x180x230mm	525x240x220mm
Net Weight (Approx.)	12kg	21KG	35kg
Layout/Terminals	M8	M8	M8
Chemistry	Lithium Iron Phosphate (LiFePo4)
Case /Packing	ABS case
LCD display	Optional
Blue tooth	Optional
Comms.	Optional
Cycle life	>3000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD
Depth of Discharge (DoD)	100%
Charge model	CV/CC
Charging voltage	14.6V
Optimum charge current range	20A to 50A
Rapid charging	Max. charge current 100A (1C) (Max Temperature increase within 15°C)
BMS Charge Voltage Cut-Off	15.0 V (3.75 ±0.025 vpc) (1 ±0.2 s)
BMS Discharge Voltage Cut-Off	8.8 V (2.2 ±0.08 vpc) (20ms)
Standard charge current	20A (0.2C)	40A	50A
Max.Continuous discharge current	100 Ampere	200 Ampere	200 Ampere
Peak discharge current	300A(3C)	300A	300A
Operating temperatures	Standard  0℃~60℃ Discharge -30℃~75℃ Storage   -20℃~45℃
				Storage performance	Capacity can be kept ≥ 80% in storage for 12months





Applications :

AWP / Backup Power / Electric Vehicles / Floor Machines / Marine /

Solar System / EV / E-bike / E-Motorcycle / Boat /Golf Cart
