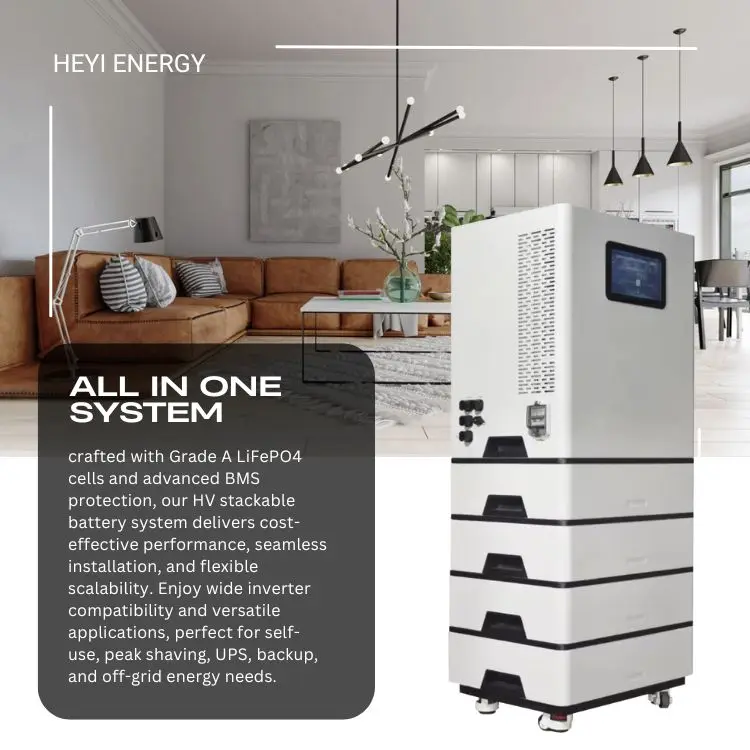

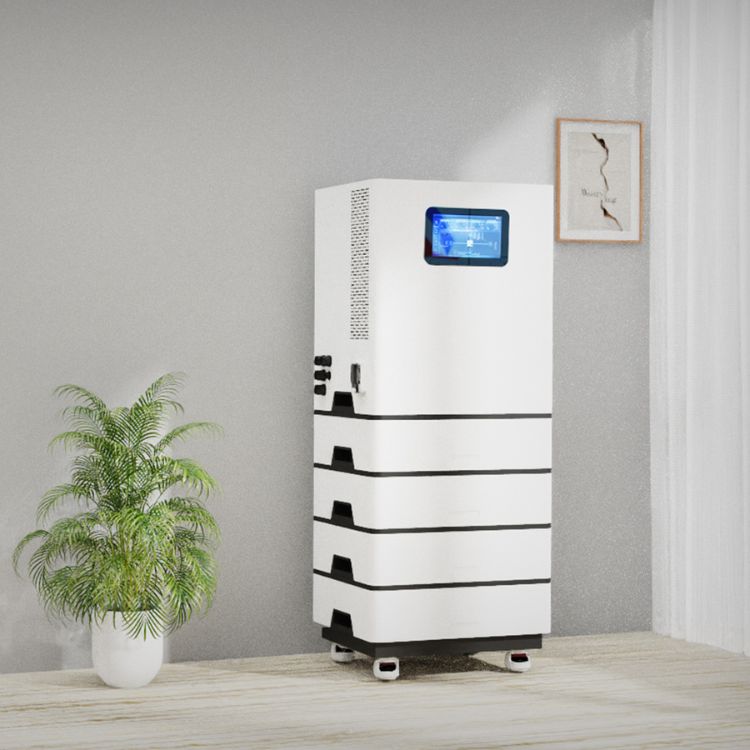

Powerhouse in a Box
Say hello to our space-saving LiFePO4 battery-inverter combo—your all-in-one energy solution with 8kW/10kW/15kW inverter options. Less clutter, more power1.
Installation? A Breeze
Roll it, stack it, plug it in. Our modular units with built-in wheels turn setup into a 15-minute DIY project—no electrician needed2.
Plays Well with Others
Whether you’re off-grid or grid-tied, our CAN/RS485-enabled system syncs effortlessly with SMA, Fronius, and other big-name inverters12.

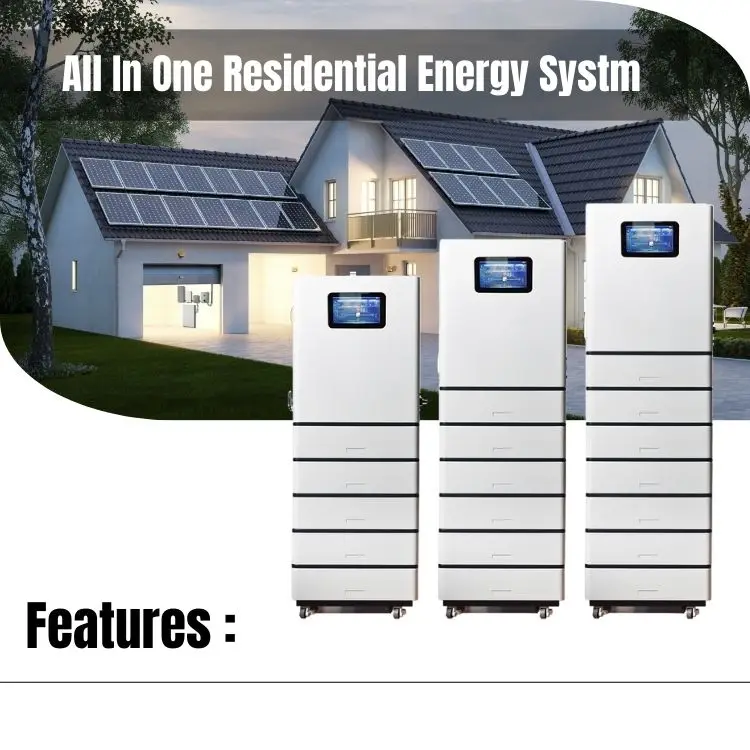

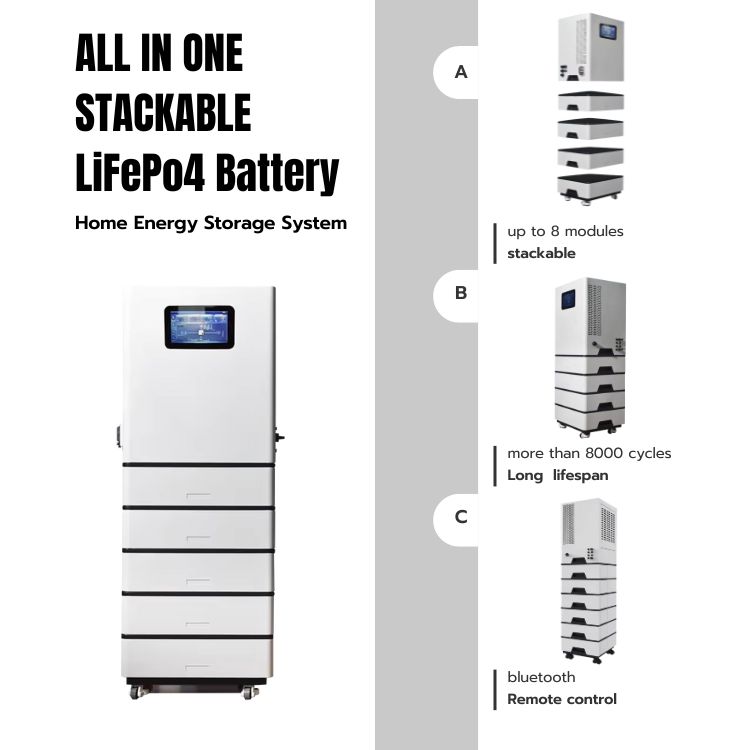

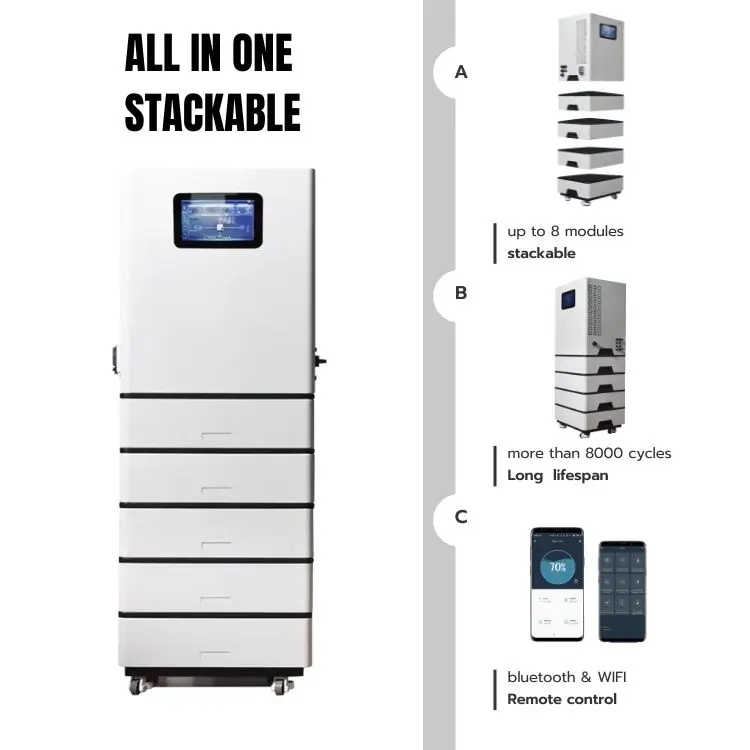

Grow as You Go
Start with 5kWh, scale to 35kWh later. Like Lego for energy storage—but with way better ROI1.
Built to Outlast
8,000+ charge cycles and a 10-year warranty? That’s LiFePO4’s A-game cells doing the heavy lifting2.
Your Energy, Your Rules

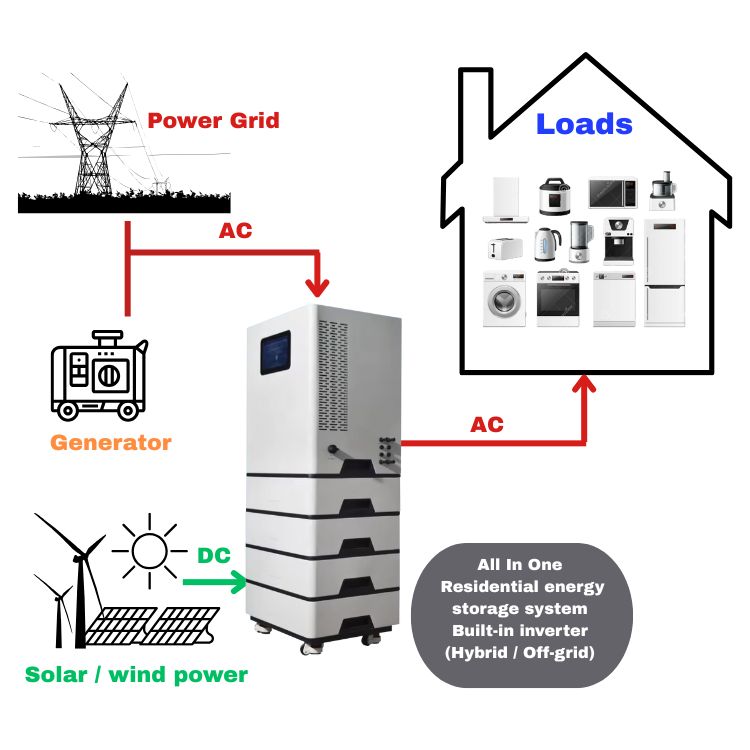

From blackout backups to solar self-consumption, this system morphs to fit homes, shops, or even that off-grid cabin you’ve been dreaming of
Specifications :
| Battery Specifications | |
| Battery Ptype | LiFePO4 |
| Rated voltage range | 153.6~358.4V |
| Rated capacity range | 100~200AH |
| Max Charge/Discharge Current | 50A/100A |
| System Performance | |
| Operating Temperature | -15°C~55°C |
| Working Altitude | 0-2000m |
| Waterproof Level | IP20 |
| BMS Communication | CAN |
| Electricity CommunicationPort | RS485 |
| Cooling Method | Cooling Fans |
| Output Waveform | Pure Sine Wave |
| Switching time | 10ms |
| Max efficiency | 98.20% |
| European efficiency | 97.50% |
| MPPT efficiency | 99.5% |
| Noise Level | <35dB |
| Warranty | 5 years |
| Inverter Specifications | |
| Phase selection | Single-phase/Three-phase |
| Inverter options | 8/10/12/15 KW |
| Inverter voltage range | 125~600VA |
| Grid voltage range | 360~440V |
| PV input power | 4KW |
| Max.PV charge current | 80A |
| AC charge current | 60A |
| Rated output power | 10KW |
| Max DC Input Voltage | 1000V |
| MPPT Work Voltage Range | 125~850V |
| Start Voltage | 125V |
| Rated output voltage | 400V,3W+N+PE |
| Rated frequency(Hz) | 50Hz/60Hz |

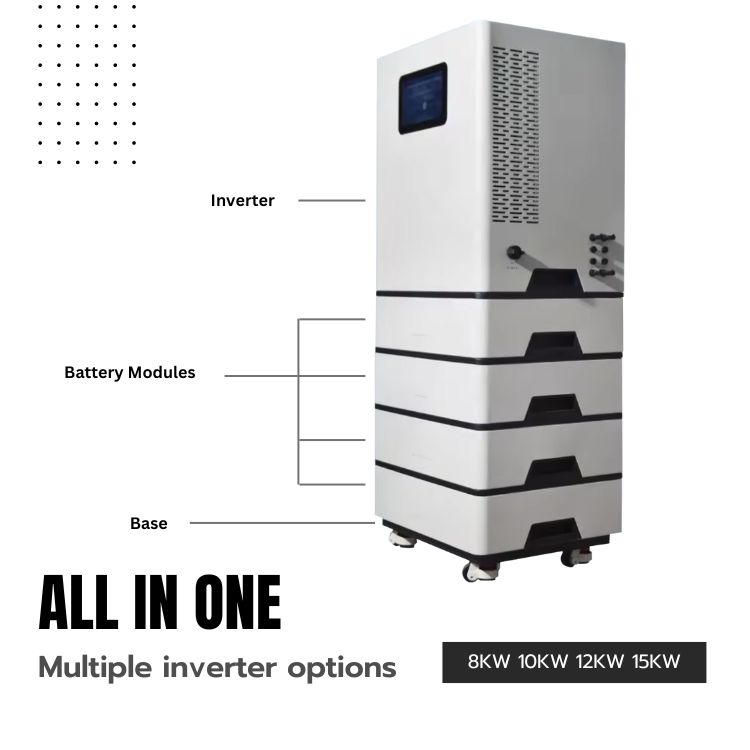

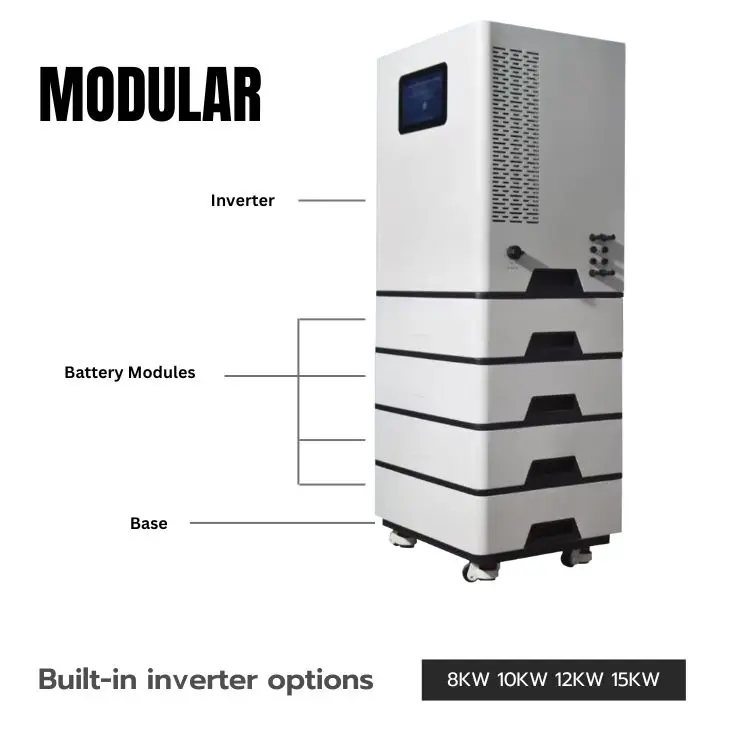

| Mechanical Specifications | |
| Inverter dimensions | 600*400*850mm |
| Inverter weight | 75.6KG |
| Battery module dimensions | 600*400*200mm |
| Battery module weight | 46.9KG |
| Base dimensions | 600*400*55mm |
| Base weight | 10.8KG |
We can arrange Door to Door delivery service for small orders or samples .
HEYI ENERGY is a leading high-tech enterprise specializing in the development and manufacturing of advanced lithium battery technologies. Established in 2014, we focus on lithium iron phosphate (LiFePO4) and lithium-ion (NMC) battery solutions, delivering safe, reliable, and efficient energy storage systems for global markets.
Our state-of-the-art production facilities span over 50,000 square meters, equipped for the large-scale manufacturing of both battery cells and packs. With a workforce of more than 1,500 employees, including over 300 experienced R&D engineers, we continuously drive innovation and quality through technological leadership.
HEYI ENERGY proudly provides OEM and ODM solutions to 100+ global partners, enabling customized energy solutions across a wide range of applications. Our product portfolio includes:
- Residential energy storage systems
- Commercial and industrial energy storage solutions
- Power batteries for various vehicles and industrial machinery
- Ultra-low temperature batteries for extreme environments
Our core technical team possesses extensive expertise in battery system design, battery management systems (BMS), operational control, and rigorous cell and module testing. From the initial concept to the final product, we ensure system compatibility, stability, and long-term reliability.
At HEYI ENERGY, our mission is to provide sustainable, cost-effective power solutions that not only meet the evolving needs of our customers but also contribute to a greener, low-carbon future.
HEYI ENERGY – A globally recognized manufacturer of lithium battery and solar energy products.
Q: Do you offer free samples?
A: We don’t provide free sample, but the sample cost can return to you when you place bulk orders .
Q: What is your terms of payment?
A: We accepted most of payment terms, like T/T,L/C at sight, PayPal, Western Union, Cash etc.
Q: What is a minimum number (pieces) of order for this product?
A: Our MOQ is 1 piece, the more the quantity, the more preferential it is.
Q: How many time you need for production of one sample?
A: If customized according to customer requirements, production time needs 10-15 working days, if it’s our standardized products most of the time we can supply from stock .
Q: How do you ship the products?
A: For small orders or samples we can arrange door to door air freight delivery , for large quantity we normally arrange container or LCL ocean shipment .
Q: How much does shipping cost?
A:It depends on the quantity of goods, the shipping method, and the country . But we will always figure out the best choice for you .
Q: How can I get the best prices?
A: You get cheaper per-item price when you buy larger quantities. Use the website to check prices. Returning customers receive better discount levels.
Q: What if the product is broken?
A: If any product is faulty, you can send me the picture or video to us, and we will study it. And provide the spare parts for after sale service.
